Delivery & Lead Time
- Standard Delivery Time: Approximately 8 Weeks
- Around 4 weeks for manufacturing
- Around 4 weeks for shipping and customs clearance
- Free Delivery within New South WalesDelivery is free within NSW, using our own truck specifically designed to transport this size excavator and its accessories safely and efficiently.
Finance & Warranty
- Warranty: 12-Month Parts Warranty
- Finance Options AvailableWe have arranged a chattel mortgage facility through a finance broker, ensuring a smooth and straightforward purchasing process for our customers.

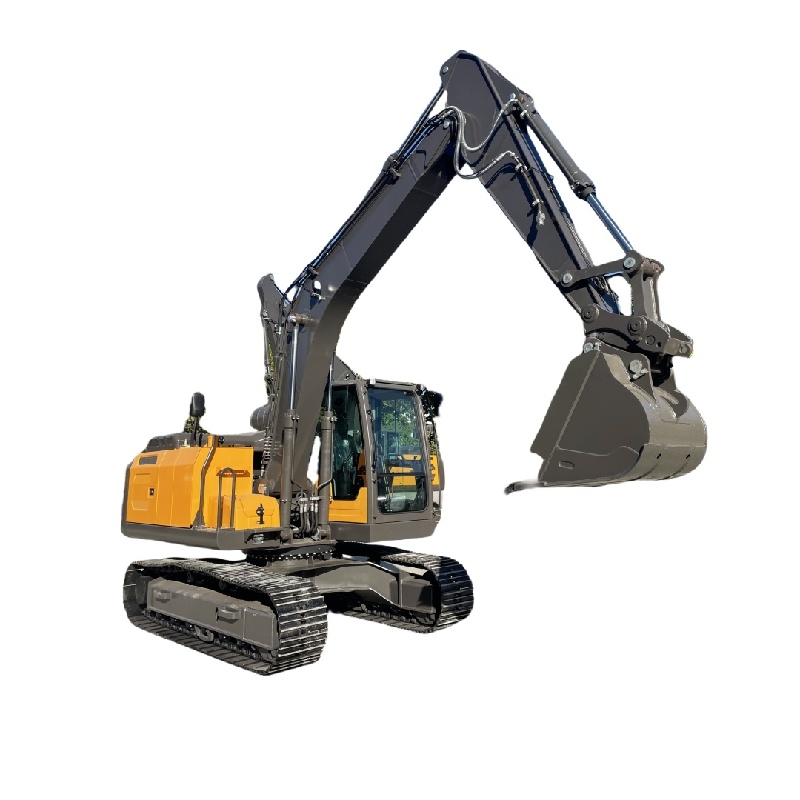

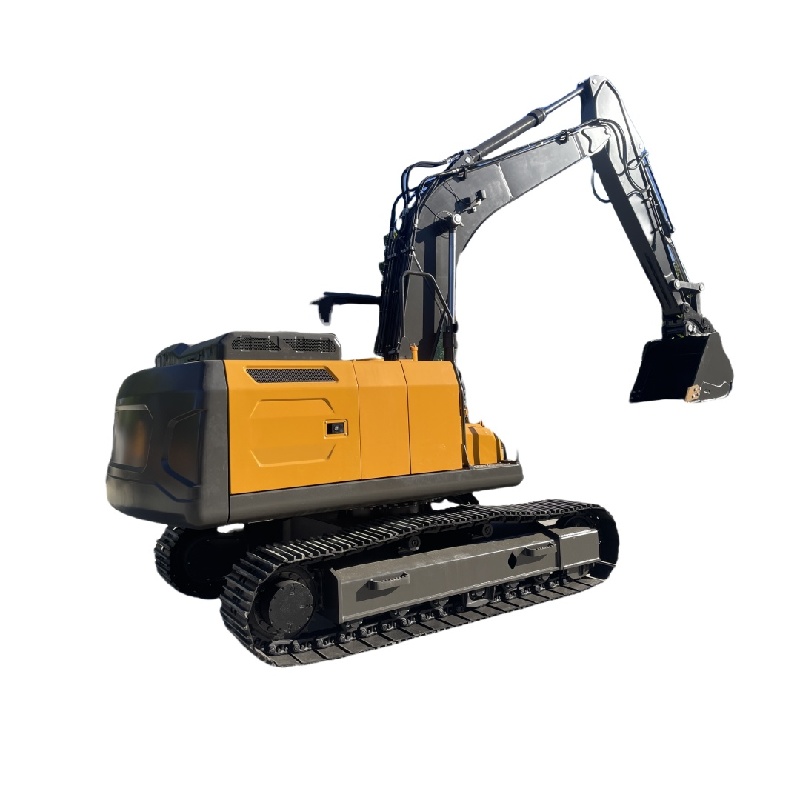

Key Features
✔ High-Performance Cummins Engine
Equipped with a Cummins QSB3.9 engine delivering 97kW at 2500rpm for dependable power in demanding environments.
✔ Premium Hydraulic Components
Features a Korean PNM hydraulic pump and HF hydraulic valves to ensure smooth, precise, and reliable operation.
✔ Advanced Servo Control System
Hydraulic pilot servo controls provide responsive handling, improving efficiency and reducing operator fatigue.
✔ Heavy-Duty Undercarriage
Durable 500mm steel tracks enhance traction and stability on uneven terrain.
✔ Luxury Operator Cabin
Fully sealed cabin with air conditioning, LCD display, and LED lighting to maximise comfort and visibility during long working hours.
✔ Breaker Pipeline System
Pre-installed hydraulic piping allows fast connection to breakers and other attachments.
✔ Large 0.6m³ Bucket
Designed for high-volume digging and efficient material handling.
Ideal For
- Civil construction projects
- Infrastructure works
- Commercial earthmoving
- Large-scale landscaping
- Mining and heavy-duty applications
Optional Engine
YC4D125-T310 engine – 92kW @ 2200rpm (Tier III) available as an alternative configuration.
ENGINE
| Item | Specification |
|---|---|
| Emission Standard | Tier III |
| Make / Model | Cummins QSB3.9 engine |
| Power / Rotation speed | 97kw / 2500rpm |
| Type | Diesel with water-cooled, 4-stroke, 4-cylinder |
TRACK SYSTEM
| Item | Specification |
|---|---|
| Maximum Travel Speed | 2.4 / 4.3 km/h |
| Width of Track Shoe | 500mm |
| Number of Track Shoes per Side | 44 pcs |
| Number of Upper Rollers per Side | 2 |
| Number of Bottom Rollers per Side | 6 |
MACHINE SIZE
| Item | Specification |
|---|---|
| Overall Dimensions (L×W×H) | 7752 × 2500 × 2847 mm |
| Height of Cabin | 2847mm |
| Track Length on Ground (Axle Base) | 2950mm |
| Track Gauge | 2000mm |
| Minimum Ground Clearance | 380mm |
| Swing Radius at Tail | 2389mm |
| Length of Boom | 4500mm |
| Length of Arm | 2500mm |
PERFORMANCE PARAMETERS
| Item | Specification |
|---|---|
| Standard Bucket Capacity | 0.6m³ |
| Swing Speed | 11 rpm |
| Maximum Grade Ability | 35° (70%) |
| Maximum Bucket Digging Force | 95KN |
| Maximum Arm Digging Force | 55KN |
| Hydraulic System Pressure | 32Mpa |
| Machine Weight | 14000kg |
| Fuel Tank | 251L |
| Hydraulic Oil Tank | 160L |
WORKING RANGE
| Item | Specification |
|---|---|
| Maximum Digging Height | 8627mm |
| Maximum Dumping Height | 6025mm |
| Maximum Digging Depth | 5343mm |
| Maximum Vertical Digging Depth | 4811mm |
| Maximum Digging Radius | 8198mm |
| Minimum Swing Radius | 2770mm |
